CCM-EV
World-class embedded software implementations of leading EV charging communication protocols for integration of Vehicle-to-Grid (V2G) support into your EVCC.
Overview
CCM-EV offers high-quality, standards-compliant implementations of all major EV charging communication protocols. Our software design prioritizes seamless integration into your electric vehicle communication controllers (EVCC).
Our software stack is fully AUTOSAR compatible, allowing for easy integration with your existing AUTOSAR environment. We also support non-AUTOSAR deployments through our flexible adaptation layer.
Key Benefits
- Standards-compliant implementations of all major protocols
- AUTOSAR compatibility for seamless integration
- Non-AUTOSAR deployments supported through adaptation layer
- Optimized for embedded systems with minimal resource usage
- Proven in production environments
- Continuous updates to maintain compliance with evolving standards
Protocol Implementations

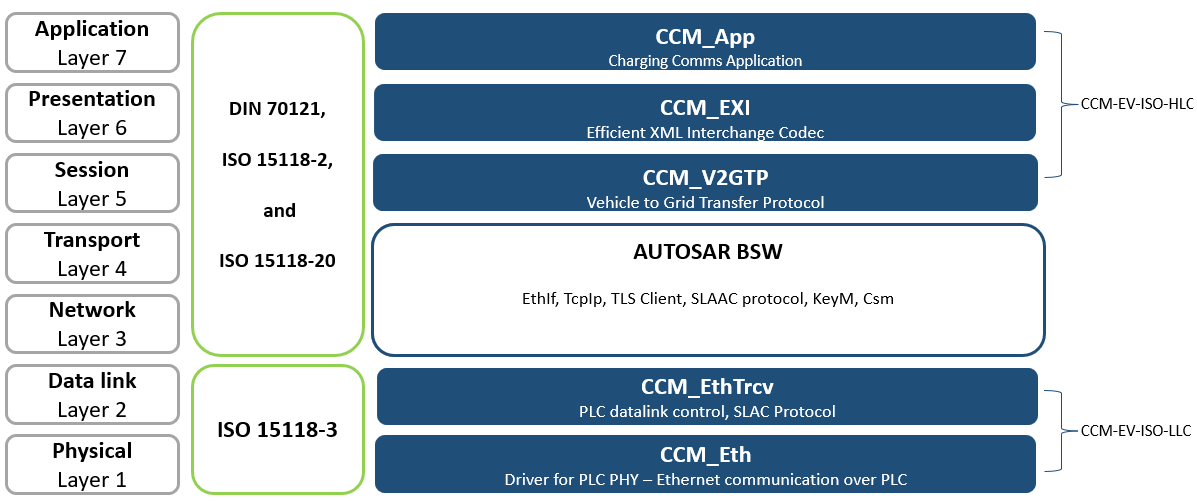

CCM-EV-ISO
Our ISO 15118 implementation provides a complete solution for high-level communication between electric vehicles and charging stations, supporting all variants of the standard.
Features:
- DIN 70121, ISO 15118-2, ISO 15118-3, ISO 15118-20, ISO 15118-20 AMD1 standard support
- External Identification Means (EIM) and Plug and Charge (PnC) support
- Support for AC, DC, Bi-directional Power Transfer (BPT), Automated Connection Device for Pantograph (ACDP), and Wireless Power Transfer (WPT) charging modes
- AC BPT DER according to ISO 15118-20 AMD1
- MCS (Megawatt Charging System) according to AMD1
- Charging security including V2G certificate handling and Plug & Charge security handling
- TLS secure communication
- Complete EV side EXI schema-informed Codec for Vehicle-to-Grid (V2G) messages handling optimized for embedded systems
- Complete EV side Signal Level Attenuation Characterization (SLAC) Implementation
- Drivers for HomePlug Green PHY chips from major silicon vendors

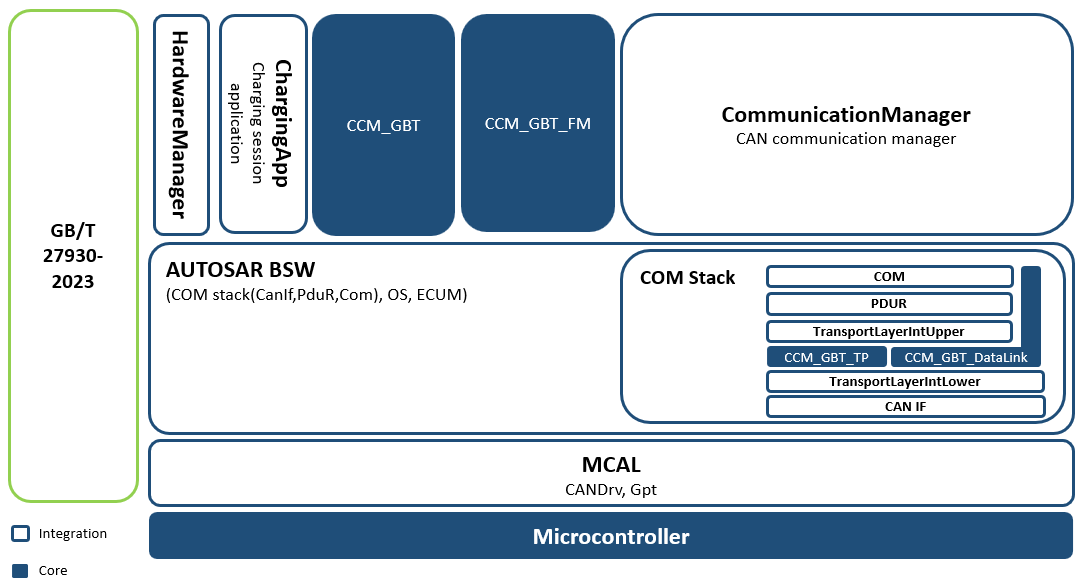

CCM-EV-GBT
Our GB/T implementation supports both the 2015 and 2023 versions of the Chinese charging communication standard, ensuring compatibility with the Chinese EV market.
Features:
- GB/T 27930-2023 and 2015 standard support
- Support for both System A and System B
- Protocol stack implementation includes System B Transport Layer and Data Link Layer
- AC and DC charging support
- Optimized for embedded environments
- Seamless integration with AUTOSAR J1939 and CAN communication stacks
- Support for non-AUTOSAR deployments through adaptation layer

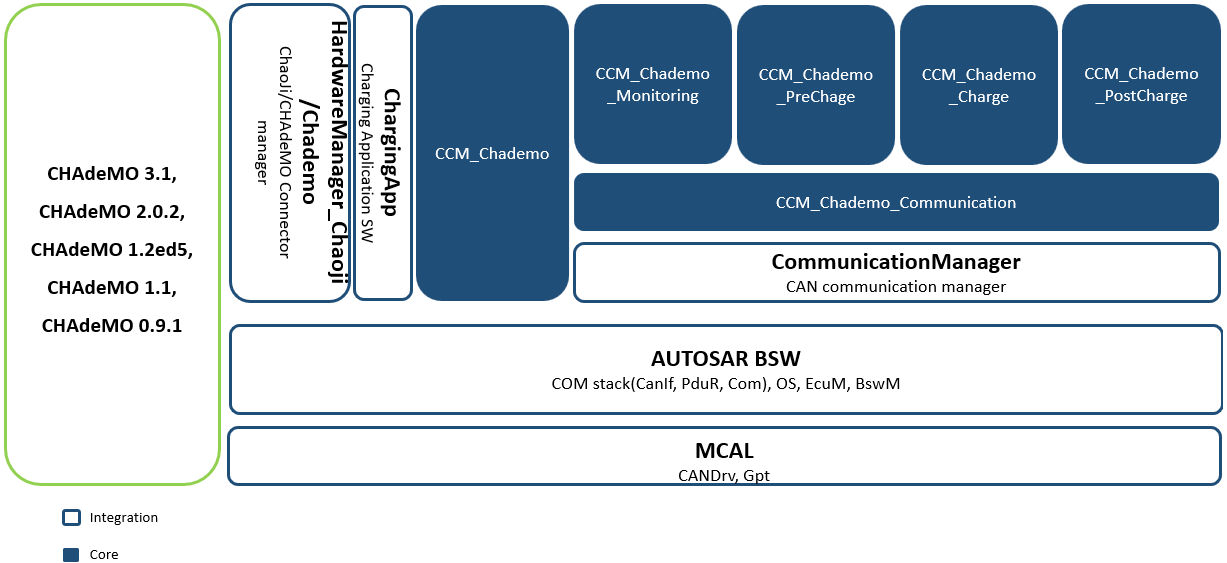

CCM-EV-CHADEMO
Our CHAdeMO implementation supports all versions of the communication protocol of the Japanese DC charging standard, from legacy versions to the latest Chaoji specification.
Features:
- CHAdeMO 3.1 (ChaoJi type 2) and backwards compatibility with CHAdeMO 2.0.2, CHAdeMO 1.2.ed5, CHAdeMO 1.1, CHAdeMO 0.9.1 support
- CHAdeMO 2.0.2 (CHAdeMO connector) and backwards compatibility with CHAdeMO 1.2.ed5, CHAdeMO 1.1, CHAdeMO 0.9.1 support
- Seamless integration with AUTOSAR CAN communication stacks
- Support for non-AUTOSAR deployments through adaptation layer
Integration Options
Our software is designed for seamless integration with various system architectures.
AUTOSAR Integration
- Classic and Adaptive AUTOSAR support
- Compliant with AUTOSAR layered architecture
- ARXML configuration files provided
- Compatible with major AUTOSAR tools
Non-AUTOSAR Integration
- Flexible adaptation layer for any system
- C implementation
- Minimal dependencies for easy integration
- Comprehensive documentation included
Ready to Integrate Advanced Charging Communication?
Contact us today to discuss how CCM-EV can accelerate your EV charging project development.
